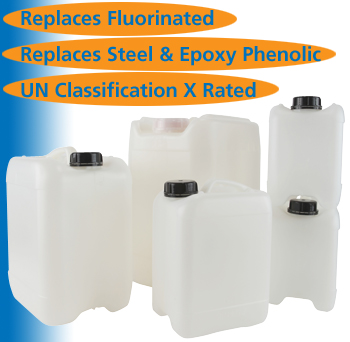

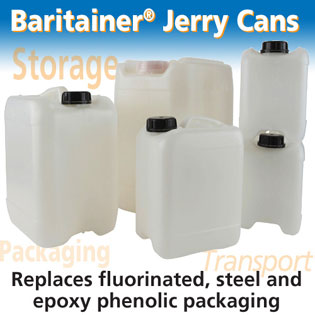

Baritainer® Jerry Cans
|
|
|
The alternative solution for packaging, storing & transporting chemicals that usually require glass, metal, fluorinated HDPE or other single barrier containers.
• Replaces fluorinated, steel and epoxy phenolic
• Impact resistant
• FDA Compliant
• Chemical resistance
• UN Classification Y Rated
• Stackable and lightweight
• Recyclable
---> Order 405594 Series Baritainers
|
 |
• Replaces fluorinated, steel and epoxy phenolic |
• Impact resistant
|
• Lightweight and stackable
|
• Enhanced chemical resistance and barrier properties
|
• UN 3H1 Y marking
|
• FDA compliant
|
| • Recyclable |
405594
|
-0004 |
-0001 |
-0002 |
-2070 |
Nominal Capacity gallons (liters)
|
1.1 (4)
|
1.32 (5)
|
2.64 (10)
|
5.28 (20)
|
Weight lbs (grams)
|
0.75-0.84
(340-380)
|
0.84-0.93
(380-420)
|
1.68-1.76
(760-800)
|
2.65 (1202)
|
UN Marking /USA
|
3H1/Y1.8/150
|
3H1/Y1.8/150 |
3H1/Y1.2/100
|
3H1/Y1.8/100 |
| Pallet Quantity (each) |
396 |
360 |
160 |
96 |
A - Length inches (mm)
|
7.85 (199)
|
7.85 (199)
|
9.33 (237)
|
10.1 (265)
|
B - Width inches (mm)
|
6.51 (165)
|
6.51 (165)
|
8.43 (214)
|
10.9 (277)
|
C - Height inches (mm)
|
7.13 (181)
|
8.77 (223)
|
11.56 (294)
|
14.3 (363)
|
E - Cap (mm)
|
50
|
50
|
50
|
70 |
F - Neck ID inches (mm)
|
1.5 (38)
|
1.5 (38)
|
1.5 (38)
|
2.755 (70)
|
See dimensional drawing above for letter references.
