Plastic Properties of Polyvinylchloride (PVC)

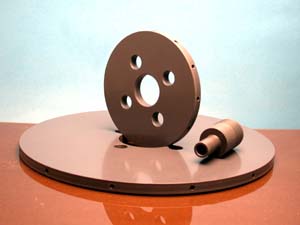

PVC Parts

PVC is a great product for machining. Above shows two disks as well as a small section of machined piping.
Polyvinylchloride (PVC) has a linear structure similar to polyethylene but with a chlorine atom replacing a hydrogen atom on alternate carbon atoms. PVC itself is hard and rigid but the addition of phthalate esters as plasticizers makes it soft and pliable and ideal for gloves, photographic dishes and tubing. Polyvinylchloride is generally transparent with a bluish tint. It is attacked by many organic solvents but it has a very good resistance to oils and it has a low permeability to gases. In its rigid form PVC is available in sheets which can readily be welded to produce tanks, trays and troughs. It is not recommended for use above 70° Celsius although it can be taken to 80° for short periods.

Custom Quote ButtonDynalab Corp's plastic fabrication shop fabricates many catalog and custom Polyvinylschloride products. If you can't find the product you require on our website please e-mail for a custom quote.

Don't see the answers to your PVC questions? It must be time to see what Mr. Plastic has to say. Mr. Plastic is a wealth of technical, practical and even some hysterical plastic advice. Please submit your request via e-mail, phone calls will not be accepted.

  PVC Resistance:
   PVC Quick Facts:
Excellent resistance (no attack) to Dilute and Concentrated Acids, Alcohols, Bases, Aliphatic Hydrocarbons and Mineral Oils
  • Max Temp: 158°F 70°C
• Min Temp: -13°F -25°C
• Autoclavable: No
• Melting Point: 176°F 80°C
• Tensile Strength:
• Hardness: R105
• UV Resistance: Good
• Clear
• Rigid
• Specific Gravity: 1.34
Good resistance (minor attack) to Vegetable Oils and Oxidizing Agents

Limited resistance (moderate attack and suitable for short term use only) to Aldehydes

Poor resistance (not recommended for use with) Aldehydes, Esters, Aromatic and Halogenated Hydrocarbons, and Ketones

 PVC Fabrication:    Additional Information:
• This unique material is glueable and weldable
• Supplied in gray, white, and clear, in sheet, rod, or tubing
• PVC is very machineable and heat bends nicely
• This is a popular material for tanks and fittings
• PVC is commonly used for nuts, bolts, ducts, hoods, and process tanks


• Chemical Properties A-F
• Chemical Properties G-Z
• Physical Properties

• Use and Care of Plastics
