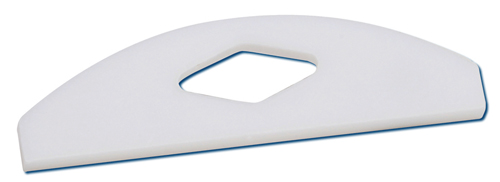

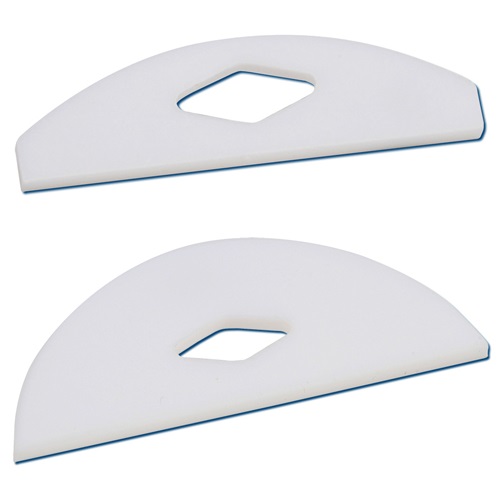

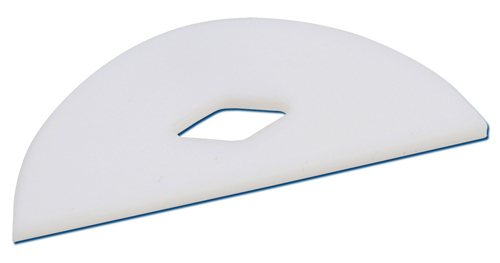

These PTFE stirrer blades and accompanying shafts are manufactured in a complete range of sizes and shaft lengths.
The PTFE stirrer blades are inert, unbreakable, will not scratch and are useable to 260ºC.
Shafts of 650mm in length are produced with a stainless steel core (Grade 304) and an exposed end for more rigid clamping to the chuck drive. Shafts up to 12mm diameter have an exposed end of 50mm long and 6.5mm diameter.
| Square End |
| 312534 |
-0001 |
-0002 |
-0003 |
|
|
|
| Blade Thick mm |
3.2 |
3.2 |
3.2 |
|
|
|
| Blade Wide mm |
52 |
76 |
90 |
|
|
|
| Blade Height mm |
14 |
19 |
28 |
|
|
|
| Plain End |
| 312544 |
-0001 |
-0002 |
-0003 |
-0004 |
-0005 |
|
| Blade Thick mm |
3.2 |
3.2 |
3.2 |
3.2 |
3.2 |
|
| Blade Wide mm |
65 |
75 |
105 |
125 |
150 |
|
| Blade Height mm |
25 |
25 |
25 |
25 |
25 |
|
| Shafts only for above Blades |
| 312554 |
-0001 |
-0002 |
-0003 |
-0004 |
|
|
| Shaft Diameter mm |
6 |
6 |
9.5 |
9.5 |
|
|
| Shaft Length mm |
400 |
500 |
550 |
650 |
|
|
