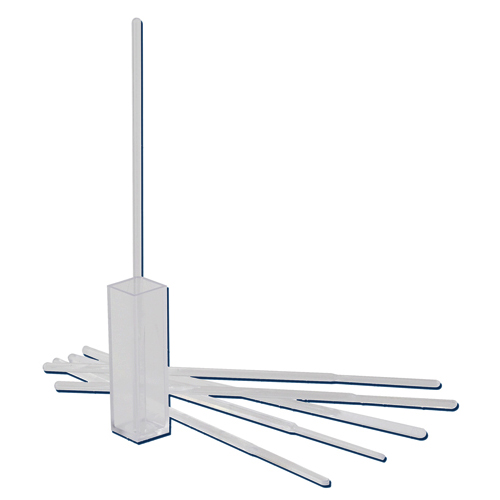

Kartell 4 Clear Side Macro Cuvettes
Cuvettes, 4 Clear Sides Macro 4.5ml

Four clear side cuvettes are designed specifically for fluorometry, this is an excellent choice for nephelometry and spectrophotometry. A negligible variation in absorbance between the 4 optical sides allows readings from any side.

Cuvettes for spectrophotometry application in the visible spectrum. Clear and sharp optical path with indication of the optical path direction. They are made of optical PS and UV grade PMMA and are equipped with optically machined walls (optical faces) to ensure optimal transparency along the spectral field from 340 to 800 nm (optical PS) and from 280 to 800 nm (UV grade PMMA).

The two optical face version has grooves on the two walls not optically machined to provide a better grip and to prevent positioning errors. They are compatible with most of the spectrophotometers and photometers on the market. The production technology and quality control determine reproducibility of the cuvettes. The absorption changes are kept within the ± 1% interval, an extremely important condition especially for analyses in series.

Cuvette Dimensions: 12 x 12 x 45mm. Light Path: 10mm.
Packaged 100 per covered tray, with 500 per case.

Note: 4 clear-sided cuvettes are not sorted by nest numbers.

  Visible UV-VIS
Material PS PMMA
Filling Volume Max. uL   4.5 4.5
Light Path mm 10 10
Range of Application nm 340-800
280-800
Case Quantity  500 500

  • Ready to Buy?
    You are not currently logged in. Please log in to obtain the best pricing and availability.
    List Price: $162.50
    Discount: $0.00
    Your Price: $162.50
    Qty:
    Dynalon Item #: 202285
    Item#: 228-0000

Alternative photos:
